Liquid cooling/Chiller Module

_

More and industry situation which producing or running would increasing the temperature , so its need temperature control or cooling.  And liquid cooling its best solution which safe and stable. Also some liquid need keep right temperature, for example , the Bio- liquid ,milk , water , wine which need right temperature . we focus on thermo control technology that the liquid temperature control or cooling the liquid which drawing the heat from heating source parts in different industry application . we apply our products to Aesthetical /surgical laser, semiconductor industry , water treatment, testing instrument , Battery cooling , spot cooling for more than 100 global customer already.

Chiller Application

Their size, weight, and durability make them ideally suited for mobile or portable applications, including:

Aesthetical /surgical laser cooling

IT /Chip Semiconductor cooling

Battery thermo management

Water treatment

Product List

Model  Power
Supply
 Current
Range(A)
Capacity
(W) range
Application  Weight(KGS) Refrigerant NOTE
FSCH019Z24 DC 24V 1~7 130~400 1. Beauty Equipment Cooling
2. Laser Cooling
3. Communication equipment Cooling
4. Industrial equipment Cooling
5. High performance chip cooling
6. Radar Cooling
7. Special operation of the body cooling
8. Medical use and medical equipment cooling
9. Advertising machine Cooling
10. Scientific experiments, special instruments and other equipment to cool.
11. Evaporating Range -18~20 C
3.3 R134A/R290 304 Stainless coil evaporator
FSCH019Z24B DC 24V 1~7 130~400 3 R134A/R290  Stainless plate evaporator
FSCH035Z24 DC 24V 2~12 200~550 5.3 R134A/R290 304 Stainless coil evaporator
FSCH035Z24B DC 24V 2~12 200~550 5 R134A/R290  Stainless plate evaporator
FSCH108Z24B DC 24V 2~19 300~1500 15 R134A  Stainless plate evaporator
FSCH150Z24B DC 24V 3~24 400~2000 18 R134A  Stainless plate evaporator
FSCH019Z48 DC48V 1~4.5 100~450 3.3 R134A/R290 304 Stainless coil evaporator
FSCH019Z48B DC48V 1~4.5 100~450 3 R134A/R290 Stainless plate evaporator
FSCH035Z48 DC48V 3~6 250~700 5.5 R134A/R290 304 Stainless coil evaporator
FSCH035Z48B DC48V 3~6 250~700 5 R134A/R290 Stainless plate evaporator

Note: we have strong R&D team, we can supply the customized sevice. If you have some special need , we can do the special.

Stainless coil evaporator

Stainless plate evaporator

Chiller systerm diagram

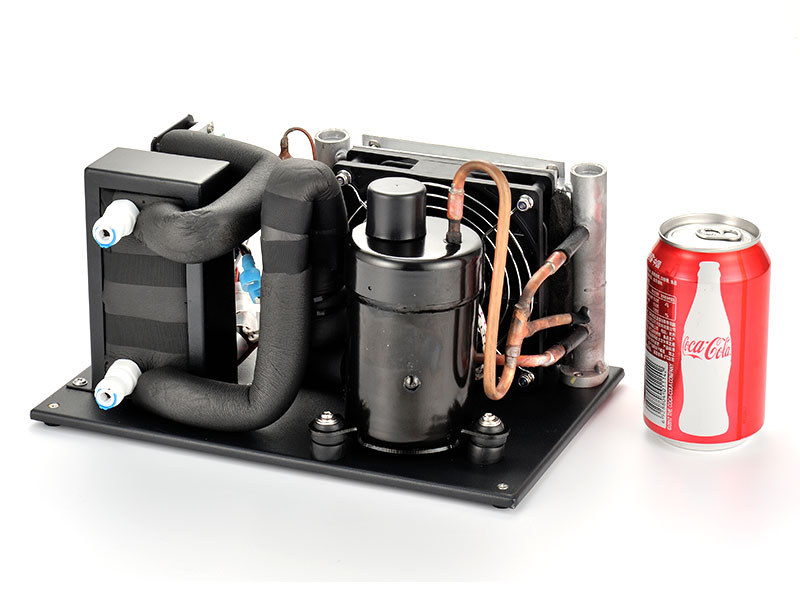

Recirculating chiller Module unit

Products Feature

Liquid Cooling Unit Module Unit

Products Feature
